Section 2
Getting Started
This section contains the steps required to get a simple system with a receiver and two transmitters up
and running. Hardware assembly, initial programming of the components, teaching the transmitters to
the receiver, and demonstrating the transmission protocol are described in the following subsections.
2.1
Hardware Assembly
The kit hardware must be interfaced to the STK500.
Step A: Assemble the STK500 Board
The STK500 Board must be set up properly before mounting the STK512 Interface Board. The assem-
bled STK500 Board is shown in Figure 2-1 .

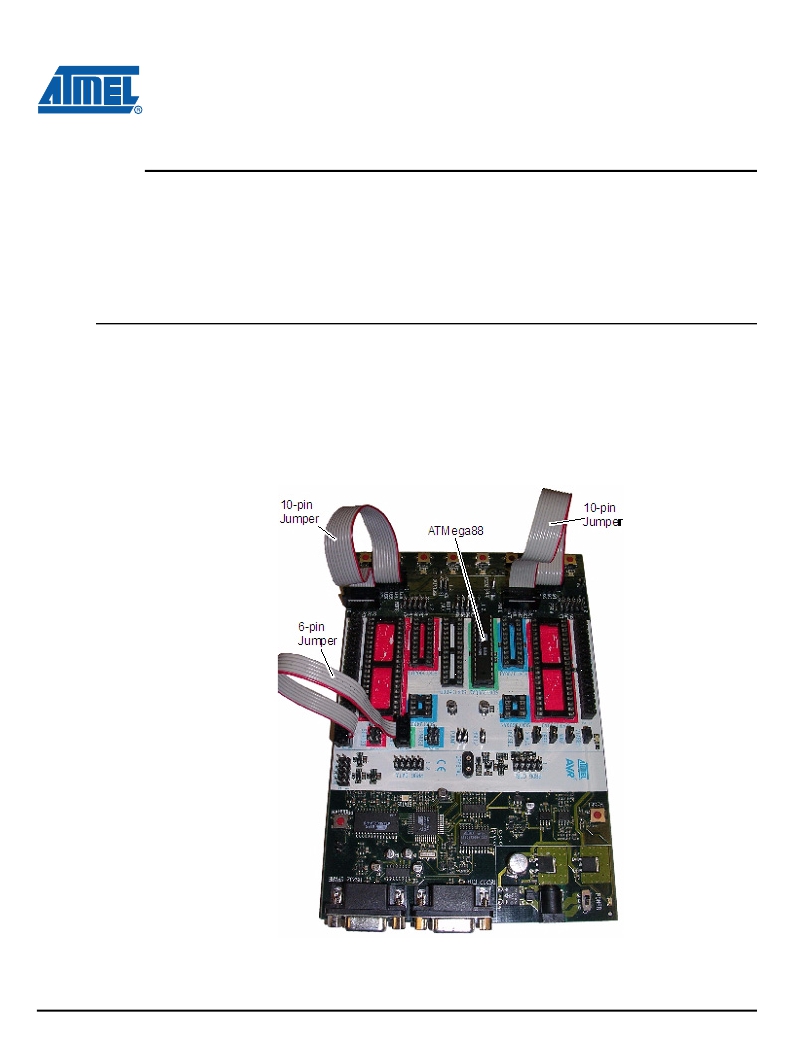

Figure 2-1.
STK512 User Guide
STK500 Board with Ribbon Cables and Microcontroller
2-1
5170C–AVR–10/09
